ポータブル バイパスTAP「EdgeSafe™」
特長
- バイパス機能:インライン装置をバイパスし、障害時にインライン装置を切り離しつつ、既存の回線を維持
- アグリゲーション機能:上り下りトラフィックを集約し、同じトラフィックを2ポートまで出力
- リジェネレーション機能:1つのミラートラフィック(span)をコピーし3ポートまで出力
- ブレークアウト機能:上り下りのトラフィックを別々に分岐して出力する通常のTAP機能
- 100/1000Base-T対応
- Copper or SX or LXからCopper or SFPにメディアコンバート可能なモデルあり
- ポータブルタイプで単体で動作可能
- 別売りラックマウントパネル(RMP-1U)で1Uに4つまで設置可能
仕様
製品名 | 100/1000M Copper Bypass TAP |
---|---|
対応ネットワーク | 100/1000M BASE-T (Copper以外は1G) |
外観 | ![]() |
ネットワークポート(入力) | 2ポート (RJ-45) |
モニタポート(出力) | 2ポート (RJ-45) |
電源 | 100-240VAC |
寸法 (W) x (D) x (H) | 99.06 x 172.72 x 29.21 mm |
重量 | 0.31kg |
概要 | バイパスTAPは、IPSなどのセキュリティモニタをインライン回線から分離するために使用します。監視信号の伝達が停止した際には、セキュリティ装置を自動的に切り離す機能を持ちます。 また、アグリゲーティングTAPがもつ3つのモード(ブレークアウト、アグリゲート、リジェネレート)も備えたTAPです。 なお、CopperだけでなくSX、LXからCopper、SFPにメディアコンバートするTAPもあります。 |
型番 | P1GCCBP (C ⇒ C) P1GCSBP (C ⇒ SFP) P1GMCBP (SX ⇒ C) P1GMSBP (SX ⇒ SFP) P1GSCBP (LX ⇒ C) P1GSSBP (LX ⇒ SFP) *RMP-1Uに搭載可 |
システム構成
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/Copperconnecting.png?v=1468893866&v=1468893866)
ケーブリング方法としては図の通りです。
機能
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GXXBP_kinou01_re1.png?v=1510027957&v=1510027957)
通常時(バイパスモード)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GXXBP_kinou02_re1.png?v=1510027957&v=1510027957)

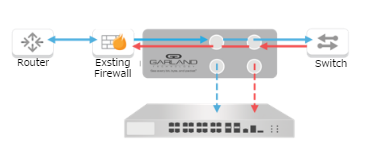

監視機器停止時
オプション
製品名 | 1U Rack Mount Plate - 4 TAPs |
---|---|
外観 | ![]() |
寸法 (W) x (D) x (H) | 482.6 x 14.2 x 43.18 mm (1U) |
重量 | 0.08kg |
概要 | 19インチラックに搭載する1Uラックマウントパネルです。 1つの1UパネルにモジュールTAPを4つまで搭載可能です。 |
型番 | RMP-1U |
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/RMP-1U_m.png?v=1468893866&v=1468893866)
RMP-1U使用例
ラインアップ
P1GCCBP | Portable 100/1000M Copper Bypass TAP |
---|---|
P1GCSBP | Portable 1000M Copper to SFP Bypass Conversion TAP |
P1GMCBP | Portable 1G Multimode Fiber to Copper Bypass Conversion TAP |
P1GMSBP | Portable 1G Multimode Fiber to SFP Bypass Conversion TAP |
P1GSCBP | Portable 1G Singlemode Fiber to Copper Bypass Conversion TAP |
P1GSSBP | Portable 1G Singlemode Fiber to SFP Bypass Conversion TAP |

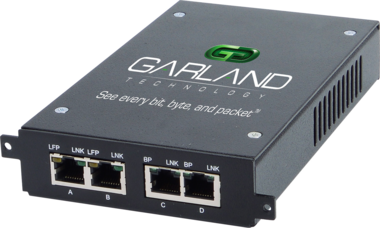

P1GCCBP
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GCCBP.png?v=1468893866&v=1468893866)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GCCBP.png?v=1468893866&v=1468893866)

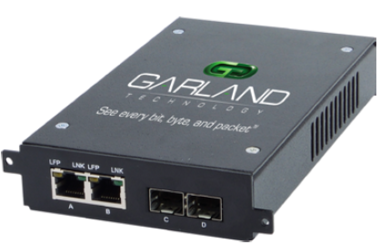

P1GCSBP
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GCSBP.png?v=1468893866&v=1468893866)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GCSBP.png?v=1468893866&v=1468893866)

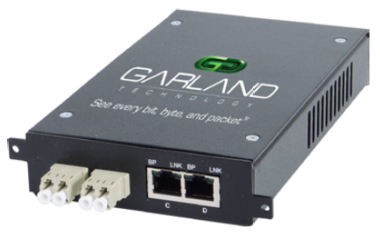

P1GMCBP
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GMCBP.png?v=1468893866&v=1468893866)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GMCBP.png?v=1468893866&v=1468893866)

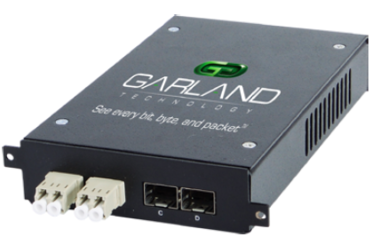

P1GMSBP
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GMSA.png?v=1468893866&v=1468893866)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GMSA.png?v=1468893866&v=1468893866)

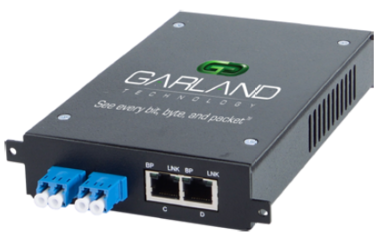

P1GSCBP
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GSCA.png?v=1468893866&v=1468893866)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GSCA.png?v=1468893866&v=1468893866)
P1GSSBP
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GSSA.png?v=1468893866&v=1468893866)
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/P1GSSA.png?v=1468893866&v=1468893866)
Copper or SX or LXからCopper or SFPにメディアコンバート可能なモデルあり
その他の情報
![](https://assets.toyo.co.jp/files/user/img/products/ict/images/Garland/Failsafe.png?v=1468893866&v=1468893866)
電源の供給が無くなると、自動的にインライン回線となる、フェールセーフ仕様になってます。
