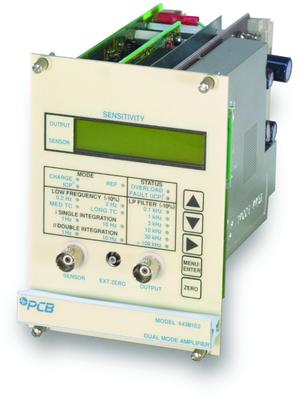

Model: 443B102
1-channel module only, dual-mode charge amplifier
Price: 見積品


■ Specifications
Performance
Sensor Input Type(s) ICP®, Charge
Voltage Gain Increment 0.1-1000
Accuracy(ICP®/ Voltage Input) ±0.5 %
Accuracy(Charge Input) ±0.5 %
Sensitivity (ICP®/Voltage) .001 to 9.999 mV/unit [2]
Sensitivity (Charge Input) 0.0001 to 10 V/pC
Input Range(maximum) (Charge Input) 100000 pC [1]
Low Frequency Response (-10 %) 2.0 Hz ±20 %
Low Frequency Response (-10 %) 0.2 Hz ±20 %
Low Frequency Response (10 %) (Velocity) 1.0 Hz ±5 %
Low Frequency Response (10 %) (Velocity) 10 Hz ±5 %
Low Frequency Response (10 %) (Displacement) 1.0 Hz ±5 %
Low Frequency Response (10 %) (Displacement) 10 Hz ±5 %
High Frequency Response (-10 %) 200 kHz ±5 %
Electrical Filter Roll-off 80 dB/decade
Filter Type (4-pole Butterworth) Low Pass
High Frequency Response (-10 %) 0.1 kHz ±5 %
High Frequency Response (-10 %) 1.0 kHz ±5 %
High Frequency Response (-10 %) 3.0 kHz ±5 %
High Frequency Response (-10 %) 10 kHz ±5 %
High Frequency Response (-10 %) 30 kHz ±5 %
High Frequency Response (-10 %) 100 kHz ±5 %
Fault/Bias Monitor LEDS Fault/Overload
Drift <0.03 pC/s [3]
Control Interface
Digital Control Interface RS-485 [4]
Human Interface Keypad
Display 2 rows, 16 columns
Digital Control: Data Rate 9600 bps
Digital Control: Start, Data, Stop, Parity 1, 8, 1, No
Environmental
Temperature Range (Operating) 0 to +50 °C
Electrical
Power Required (VDC) +15 at 230 mA
Power Required (VDC) -15 at 140 mA
Power Required (Watts) 6.25 [10]
Power Required (VDC) +28 at 5 mA + Sensor Current
Excitation Voltage 24 ±1 VDC
DC Offset <50 mV
Constant Current Excitation (to Sensor, Selectable) 0 to 20 mA [8]
Output Voltage >±10 V [9]
Output Impedance <1 Ohm
Broadband Electrical Noise (1 Hz to 10 kHz) (ICP® INPUT) -101 dB [6] [11]
Broadband Electrical Noise (2 to 22.4 kHz) (ICP® INPUT) <-110 dB [6] [11]
Spectral Noise (1 Hz) -120 dB [11]
Spectral Noise (10 Hz) -133 dB [11]
Spectral Noise (100 Hz) -142 dB [11]
Spectral Noise (1 kHz) -142 dB [11]
Spectral Noise (10 kHz) -143 dB [11]
Broadband Electrical Noise (1 Hz to 10 kHz) (Charge Input) -101 dB [5] [7]
Broadband Electrical Noise (2 Hz to 22.4 kHz) (Charge Input) <5 fC [5] [7]
Spectral Noise (1 kHz) -122 dB [5]
Spectral Noise (10 kHz) -134 dB [5]
Spectral Noise (100 kHz) -142 dB [5]
Spectral Noise (1 kHz) -142 dB [5]
Spectral Noise (10 kHz) -143 dB [5]
Oscillator (pC RMS) 100±1%
Oscillator (V RMS) 1±1%
Oscillator (Hz) 159.2±1%
Time Constant (Long TC Mode) Up to 100,000 [12] [13]
Time Constant (Med TC Mode) 10, 100, 1,000 ±20%
Overload Threshold 10 V to ± 1 V
Physical
Electrical Connector (Input, sensor) BNC
Electrical Connector (Output) BNC
Electrical Connector (Ext Zero) SMB
Size - Height 128 x 92 mm [14]
Weight 0.66 kg
All specifications are at room temperature unless otherwise specified.
Product Notes
[1] Can be increased using optional external 472B series charge attenuator.
[2] 4 Digit - Selectable
[3] Long time constant charge mode only.
[4] Must be used with PCB 440 series mainframe chassis with computer control (RS-232).
[5] Measured at gain of 1 mV/pC with 1 nF source capacitance.
[6] Measured at gain of 1,000 (60 dB), input referred.
[7] Measured at gain of 10V/pC (80 dB) with 1 nF source capacitance, input referred.
[8] Discrete mA settings (0, 2, 4, 8, 12, or 20).
[9] In medium time constant mode, output range is limitied to ±8V for certain gain settings
[10] Maximum number of 443B102 Dual Mode Signal Conditioners that can be powered by (1) 441A101 is (4). Other modules must be calculated not to exceed total power of 30 watts.
[11] Measured at gain of 1 with low noise ICP® simulator. (High pass filter = 0.2Hz)
[12] Depends on gain setting. LCD displays value when gain is entered.
[13] When in ICP® mode, long TC is true DC response.
[14] Double width unit.
Accessories:
選択アクセサリ
ERC-QC 校正証明書
Optional Versions:
No optional versions
