PCBセンサ・オンラインストア > 製品詳細 |
| Performance | ||
|---|---|---|
| Sensitivity (±2 %) (Charge Conversion) | 1 mV/pC | |
| Input Range | ±5000 pC | |
| Low Frequency Response (-5 %) | 5 Hz | [3] |
| High Frequency Response (4 mA) | 35 kHz | [1] [2] |
| Non-Linearity | ≤1.0 % FS | |
| Environmental | ||
| Temperature Range (Operating) | -54 to +121 °C | |
| Radiation Exposure Limit (Integrated Neutron Flux) | ≤10000000000 N/cm² | |
| Maximum Shock | 9810 m/s² pk | |
| Humidity Range | 100 % | |
| Radiation Exposure Limit (Integrated Gamma Flux) | ≤1 Mrad | |
| Electrical | ||
| Excitation Voltage | +18 to 28 VDC | |
| Constant Current Excitation | 2.2 to 20 mA | |
| Output Voltage | ±5 V | |
| Output Impedance | <20 Ohm | |
| Output Bias Voltage | 9 to 14.5 VDC | |
| Broadband Electrical Noise (1 to 10000 Hz) | -103 dB | [1] |
| Spectral Noise (1 Hz) | -106 dB | [1] |
| Spectral Noise (10 Hz) | -120 dB | [1] |
| Spectral Noise (100 Hz) | -140 dB | [1] |
| Spectral Noise (1 kHz) | -140 dB | [1] |
| Spectral Noise (10 kHz) | -146 dB | [1] |
| Capacitance (Maximum allowable at input) | 20000 pF | |
| Discharge Time Constant | ≥0.1 sec | |
| Resistance (Minimum required at input) | 10000 Ohm | |
| Source Capacitance Loading | <0.0005 %/pF | |
| Physical | ||

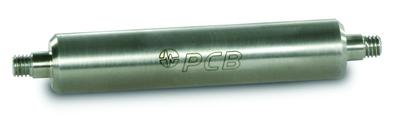

| Housing Material | Stainless Steel | |
| Sealing | Welded | |
| Electrical Connector (Input) | 10-32 Coaxial Jack | |
| Electrical Connector (Output) | 10-32 Coaxial Jack | |
| Size - Diameter | 13 mm | |
| Size - Length | 76 mm | |
| Weight | 23 gm | |
| ERC-QC | 校正証明書 |
|---|
