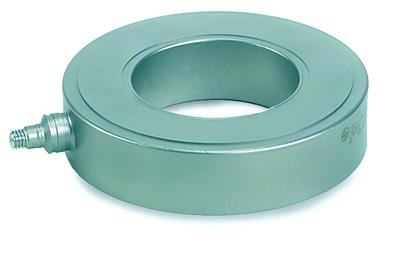

Performance | ||
---|---|---|
Sensitivity (±15 %) | 3822 pC/kN | |
Measurement Range (Compression) | ≤444.8 kN | |
Maximum Static Force (Compression) | 489.3 kN | |
Upper Frequency Limit | 35000 Hz | [2] [3] |
Non-Linearity | ≤1 % FS | [1] |
Environmental | ||
Temperature Range | -73 to +204 °C | |
Temperature Coefficient of Sensitivity | ≤0.054 %/°C | |
Electrical | ||
Capacitance | 130 pF | [4] |
Insulation Resistance | ≥1E12 | |
Output Polarity (Compression) | Negative | |
Physical | ||
Preload | 150.13 kN | |
Stiffness | 23 kN/µm | [4] |
Size - Diameter | 74.93 mm | |
Size - Height | 17.02 mm | |
Size - Bolt Diameter | 40 mm | |
Size - ID (Hole Diameter) | 40.89 mm | |
Size - OD (Sensor) | 74.93 mm | |
Size - Sensing Surface | 67.56 mm | |
Weight | 354 gm | |
Housing Material | Stainless Steel | |
Sealing | Hermetic | |
Electrical Connector | 10-32 Coaxial Jack | |
Electrical Connection Position | Side |
080A82 | 潤滑剤 |
---|---|
081A17 | |
082B07 | |
083B07 |
M083B07 | Pilot Bushing |
M081A17 | Mounting Stud, M30 x 2.00 x 2.280, BeCu |
082B07 | Anti-friction washer (for Models 207C and 217B) |
080A82 | Accessory for Force - Torque Division Product |
Output Polarity | Positive |
Electrical Connection Position | Side |
Electrical Connector | Molded Integral Cable |
