PCBセンサ・オンラインストア > 製品詳細 |

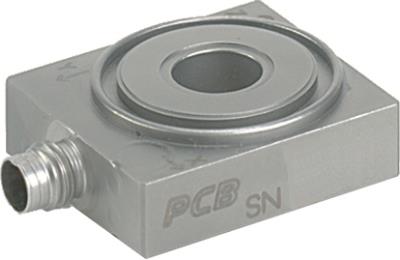

| Performance | ||
|---|---|---|
| Sensitivity (±20 %) (Z Axis) | 110 mV/N | [2] [3] |
| Sensitivity (±20 %) (X or Y Axis) | 110 mV/N | [2] [3] |
| Measurement Range (Z Axis) | 45 N | |
| Measurement Range (X or Y Axis) | 45 N | |
| Maximum Force (Z Axis) | 60 N | |
| Maximum Force (X or Y Axis) | 60 N | |
| Maximum Moment (Z Axis) | 18.98 Nm | |
| Maximum Moment (X or Y Axis) | 17.63 Nm | |
| Broadband Resolution (z axis) | ≤0.0013 N-rms | |
| Broadband Resolution (x or y axis) | ≤0.0013 N-rms | |
| Upper Frequency Limit | 90000 Hz | |
| Low Frequency Response (-5 %) (Z-Axis) | 0.02 Hz | |
| Low Frequency Response (-5 %) (X or Y Axis) | 0.01 Hz | |
| Non-Linearity | ≤1 % FS | [1] |
| Cross Talk (between X and Y Axis) | ±3 % | |
| Cross Talk (between (X or Y Axis) and Z Axis) | ±5 % | |
| Environmental | ||
| Temperature Range | -54 to +121 °C | |
| Electrical | ||
| Full Scale Output (Z Direction) | ±5 VDC | |
| Full Scale Output (X and Y Direction) | ±5 VDC | |
| Discharge Time Constant (Z Axis) | ≥25 sec | |
| Discharge Time Constant (X or Y Axis) | ≥50 sec | |
| Excitation Voltage (all channels) | 20 to 30 VDC | |
| Constant Current Excitation (all channels) | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 14 VDC | |
| Spectral Noise (1 Hz) | 1350 µN/√Hz | [4] |
| Spectral Noise (10 Hz) | 670 µN/√Hz | [4] |
| Spectral Noise (100 Hz) | 230 µN/√Hz | [4] |
| Spectral Noise (1000 Hz) | 10 µN/√Hz | [4] |
| Spectral Noise (10000 Hz) | 3 µN/√Hz | [4] |
| Spectral Noise (1 Hz) | 670 µN/√Hz | [4] |
| Spectral Noise (10 Hz) | 250 µN/√Hz | [4] |
| Spectral Noise (100 Hz) | 90 µN/√Hz | [4] |
| Spectral Noise (1000 Hz) | 10 µN/√Hz | [4] |
| Spectral Noise (10000 Hz) | 3 µN/√Hz | [4] |
| Output Polarity | Positive | |
| Physical | ||
| Preload Torque | 6.3 Nm | [5] [6] |
| Stiffness (Z Axis) | 1.75 kN/µm | [4] |
| Stiffness (X or Y Axis) | 0.7 kN/µm | [4] |
| Size - Height | 9.90 mm | |
| Size - Length | 27.3 mm | |
| Size - Width | 24.1 mm | |
| Size - Bolt Diameter | 5.21 mm | |
| Size - ID | 8.10 mm | |
| Size - Sensing Surface | 17.27 mm | |
| Weight | 26.28 gm | |
| Housing Material | Stainless Steel | |
| Sealing | Hermetic | |
| Electrical Connector | 4-Pin | |
| Electrical Connection Position | Side | |
