357B04 加速度計(加速度センサ) 電荷出力型| PCBセンサ・オンラインストア東陽テクニカ

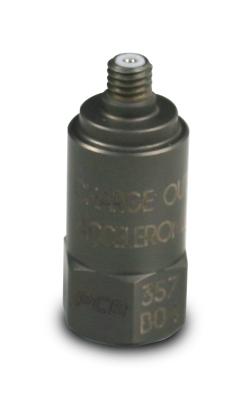

Model: 357B04
High temp., ceramic shear, charge output accel., 10 pC/g, 9k Hz, 10-32 top conn. (-95 F to +500 F)

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±15 %)	1.02 pC/(m/s²)
Measurement Range	±19600 m/s² pk
Frequency Range (+5 %)	9000 Hz	[2]
Frequency Range (+10 %)	12000 Hz	[2]
Frequency Range (+3 dB)	18000 Hz	[2]
Resonant Frequency	≥38 kHz
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±206010 m/s² pk
Temperature Range	-71 to +260 °C
Temperature Response	See Graph %/°F	[3]
Base Strain Sensitivity	0.002 (m/s²)/µε	[3]
Electrical
Capacitance	930 pF	[3]
Insulation Resistance (at 500°F)	≥100000000 Ohm	[3]
Insulation Resistance (at 70° F [21°C])	≥1000000000000 Ohm
Output Polarity	Negative
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Hex	1/2 in
Size - Height	30.2 mm
Weight	11 gm	[3]
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Top
Mounting Thread	10-32 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.

Accessories:

標準付属アクセサリ

080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32)
ACS-1	校正データ
M081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/M6x0.75)

推奨アクセサリ

003C10	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ10FT(10-32/BNC)
003C20	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ20FT(10-32/BNC)
003C30	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ30FT(10-32/BNC)
080A27	ﾏｸﾞﾈｯﾄﾍﾞｰｽ
422E51	ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ
422E52	ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ
422E53	ﾁｬｰｼﾞｺﾝﾊﾞｰﾀ
482C54	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ICP/ﾁｬｰｼﾞ型対応)

選択アクセサリ

080B10	三軸ｱﾀﾞﾌﾟﾀ0.87"
080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( J ) Ground Isolated

( P ) Positive Output Polarity

( W ) Water Resistant Cable

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
