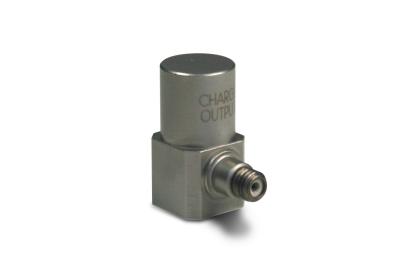

PCBセンサ・オンラインストア > 製品詳細 |
| Performance | ||
|---|---|---|
| Sensitivity (±20 %) | .357 pC/(m/s²) | |
| Measurement Range | ±4905 m/s² pk | |
| Frequency Range (±5 %) | 6000 Hz | |
| Resonant Frequency | ≥35 kHz | |
| Non-Linearity | ≤1 % | |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±29420 m/s² pk | |
| Temperature Range | -54 to +482 °C | |
| Temperature Response | See Graph %/°F | [1] |
| Base Strain Sensitivity | 0.02 (m/s²)/µε | [1] |
| Radiation Exposure Limit (Integrated Neutron Flux) | 1E10 N/cm² | |
| Radiation Exposure Limit (Integrated Gamma Flux) | 1E8 rad | |
| Electrical | ||
| Capacitance | 275 pF | [1] |
| Insulation Resistance (at 900°F [482°C]) | >100 kohm | |
| Insulation Resistance (at 70° F [21°C]) | >1 GOhm | |
| Output Polarity | Negative | |
| Physical | ||
| Sensing Geometry | Compression | |
| Housing Material | Inconel | |
| Sealing | Hermetic | |
| Size - Height | 22.2 mm | |
| Size - Diameter | 11.4 mm | |
| Weight | 16 gm | [1] |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
| Mounting Thread | 10-32 Female | |
| Mounting Torque | 2 Nm | |
