PCBセンサ・オンラインストア > 製品詳細 |

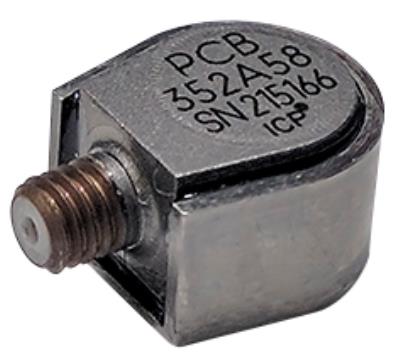

| Performance | ||
|---|---|---|
| Sensitivity (±15 %) | 1.0 mV/(m/s²) | |
| Measurement Range | ±4900 m/s² pk | |
| Frequency Range (±5 %) | 1.0 to 10000 Hz | |
| Frequency Range (±10 %) | 0.7 to 13000 Hz | |
| Frequency Range (±3 dB) | 0.3 to 20000 Hz | |
| Resonant Frequency | ≥50 kHz | |
| Broadband Resolution (1) | 0.04 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±98000 m/s² pk | |
| Temperature Range (Operating) | -54 to +121 °C | |
| Temperature Response | See Graph | |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤300 Ohm | |
| Output Bias Voltage | 7 to 12 VDC | |
| Discharge Time Constant | 1.0 to 3.5 sec | |
| Settling Time | <10 sec | |
| Spectral Noise (1 Hz) | 7840 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 2450 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 590 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 490 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 kHz) | 392 (µm/sec2)/√Hz | [2] |
| Electrical Isolation (Base) | ≥100000000 Ohm | |
| Physical | ||
| Size - Height | 5.9 mm | |
| Size - Length | 11.7 mm | |
| Size - Width | 8.4 mm | |
| Weight | 0.9 gm | [2] |
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Electrical Connector | M3 Coaxial Jack | |
| Electrical Connection Position | Side | |
| Mounting | Adhesive | |
| 039A36 | |
|---|---|
| 080A109 | ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入) |
| ACS-1 | 校正データ |
| M030EP001PH |
