PCBセンサ・オンラインストア > 製品詳細 |

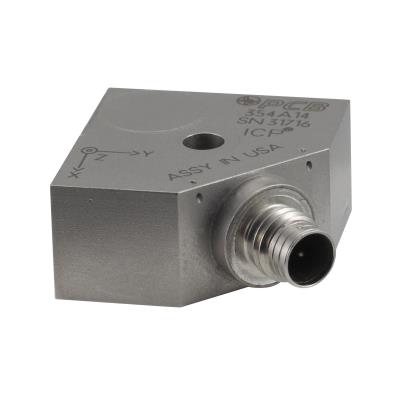

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 1.02 mV/(m/s²) | |
| Measurement Range | ±4905 m/s² pk | |
| Frequency Range (±10 %) | 5000 to 10000 Hz | |
| Frequency Range (±5 %) | 2.5 to 5000 Hz | |
| Resonant Frequency | ≥25 kHz | |
| Broadband Resolution (1) | .04 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±49050 m/s² pk | |
| Temperature Range (Operating) | -195 to +120 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | .5 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.5 to 2 sec | |
| Settling Time (within 10% of bias) | <5 sec | |
| Spectral Noise (1 Hz) | 18639 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 2551 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 589 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 343 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 kHz) | 343 (µm/sec2)/√Hz | [2] |
| Electrical Isolation (Case) | >100000000 Ohm | |
| Physical | ||
| Sensing Element | Quartz | |
| Sensing Geometry | Shear | |
| Housing Material | Stainless Steel | |
| Sealing | Hermetic | |
| Size - Height | 10.7 mm | |
| Size - Length | 22.0 mm | |
| Size - Width | 22.0 mm | |
| Weight | 27 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| 039A22 | 取付ﾚﾝﾁ(7/64" hex) |
|---|---|
| 081A133 | |
| ACS-1T | 校正データ |
| ACS-44T | 校正データ |
