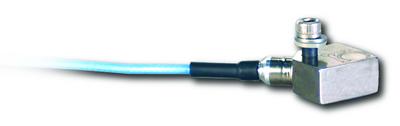

Model: 354C10
Triaxial, thru-hole mtg, ceramic shear, miniature ICP® accel., 10 mV/g, 2 to 8k Hz, ground isolated, integral cable

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±15 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (±5 )	2 to 8000 Hz
Resonant Frequency	≥40 kHz
Broadband Resolution (1)	0.03 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±98100 m/s² pk
Temperature Range	-54 to +121 °C	[3]
Temperature Response	See Graph %/°F
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	7 to 12 VDC
Discharge Time Constant	0.3 to 1.0 sec
Settling Time (within 10% of bias)	<3 sec
Spectral Noise (1 Hz)	9810 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	2943 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	785 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	308 (µm/sec²)/√Hz	[2]
Electrical Isolation	>100000000 Ohm
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	7.6 mm
Size - Length	14.0 mm
Size - Width	14.0 mm
Weight (without cable)	5.0 gm	[2]
Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Cable Length	1.5 m
Cable Type	034 4-cond Shielded
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

039A21	取付ﾚﾝﾁ(3/32" hex)
081B93	絶縁用キャップ
ACS-1T	校正データ

推奨アクセサリ

034G05	ｹｰﾌﾞﾙ4線5FT(4PIN/BNC)
034G10	ｹｰﾌﾞﾙ4線10FT(4PIN/BNC)
034G20	ｹｰﾌﾞﾙ4線20FT(4PIN/BNC)
034G30	ｹｰﾌﾞﾙ4線30FT(4PIN/BNC)
010G05	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ5FT(4ﾋﾟﾝ/BNC)
010G10	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ10FT(4ﾋﾟﾝ/BNC)
010G20	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ20FT(4ﾋﾟﾝ/BNC)
010G30	4線ｼｰﾙﾄﾞｹｰﾌﾞﾙ30FT(4ﾋﾟﾝ/BNC)
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

ACS-QC	校正機器リスト

Optional Versions:

( HT ) High temperature, extends normal operation temperatures

( M ) Metric Mount

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
