Model: 356M98

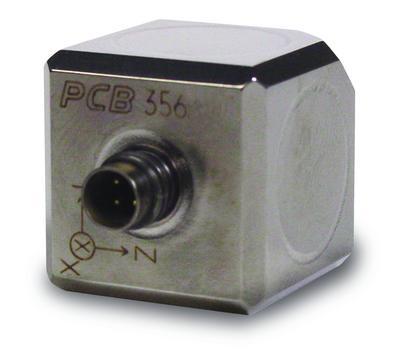

Low Outgassing, Triaxial, 1000 mV/g, titanium triaxial accelerometer .86" cube 0.3 Hz to 3000 Hz, 4-pin conn

■ Specifications

Performance
Sensitivity (±10 %)	102 mV/(m/s²)
Measurement Range	±49 m/s² pk
Frequency Range (±5 %)	0.5 to 3000 Hz
Frequency Range (±10 %)	0.3 to 5000 Hz
Resonant Frequency	≥20 kHz
Broadband Resolution (1)	0.0005 m/s² rms	[2]
Phase Response (±5 °) (at 70°F [21°C])	2 to 2000 Hz
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±5000 g pk
Temperature Range (Operating)	-29 to +77 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	0.007 (m/s²)/µε	[2]
Electrical
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤600 Ohm
Output Bias Voltage	8 to 12 VDC
Discharge Time Constant	0.8 to 3.0 sec
Settling Time (within 10% of bias)	<12 sec
Spectral Noise (1 Hz)	112 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	39 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	12 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	4.4 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	20.3 mm
Size - Length	26.1 mm
Size - Width	20.3 mm
Weight	39 gm	[2]
Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Mounting Thread	10-32 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

Accessories:

選択アクセサリ

ACS-QC	校正機器リスト

Optional Versions:

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

( TLA ) TEDS LMS International - Free Format

( TLB ) TEDS LMS International - Automotive Format

( TLC ) TEDS LMS International - Aeronautical Format

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
