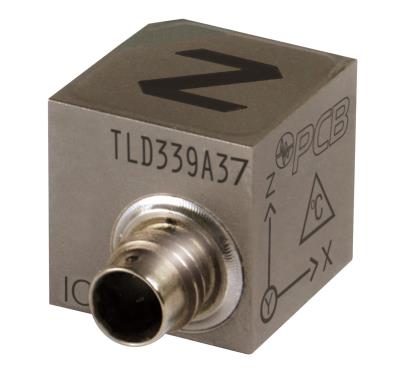

PCBセンサ・オンラインストア > 製品詳細 |
| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 10.2 mV/(m/s²) | |
| Measurement Range | ±490.5 m/s² pk | |
| Frequency Range (±5 %) | 0.3 to 4000 Hz | |
| Frequency Range (±10 %) | 0.2 to 7000 Hz | |
| Resonant Frequency | ≥35 kHz | |
| Filter Type | single pole | |
| Electrical Filter Roll-off | 20 dB/decade | |
| Electrical Filter Corner Frequency | ≥15 kHz | |
| Broadband Resolution (1) | 0.019 m/s² rms | [2] |
| Phase Response (±5 °) (at 70°F [21°C]) | 3 to 2000 Hz | |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| TEDS Compliant (Per IEEE 1451.4) | Yes | |
| Environmental | ||
| Overload Limit (Shock) | ±49000 m/s² pk | |
| Temperature Range (Operating) | -54 to 180 °C | |
| Temperature Response | See Graph | [2] |
| Temperature Coefficient of Sensitivity | ≤0.020 %/°C | [2] |
| Base Strain Sensitivity | .0098 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 21 to 30 VDC | |
| Constant Current Excitation | 2 to 4 mA | [3] |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 8 to 15 VDC | |
| Discharge Time Constant | 2 to 6 sec | |
| Settling Time (within 10% of bias) | <30 sec | |
| Spectral Noise (1 Hz) | 2060 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 392 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 196 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 118 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 kHz) | 98 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Sensing Element | UHT-12™ | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 14.0 mm | |
| Size - Length | 20.3 mm | |
| Size - Width | 14.0 mm | |
| Weight | 10.5 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting Thread | 5-40 Female | |
