Model: TLD356A03

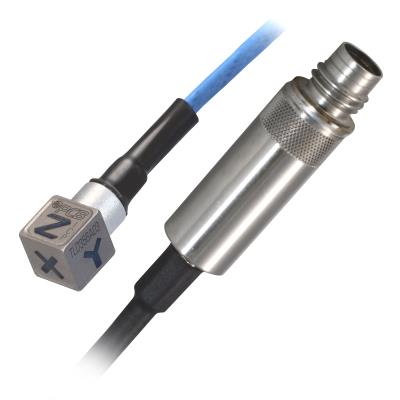

Triaxial, lightweight (1.0 gm) miniature, ceramic shear ICP® accel., 10 mV/g, 0.25" cube, TEDS 1.0.

■ Specifications

Performance
Sensitivity (±20 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (±5 %) (y or z axis)	2 to 8000 Hz
Frequency Range (±5 %) (x axis)	2 to 5000 Hz
Frequency Range (+1 dB) (x axis)	≥8 kHz
Resonant Frequency	≥50 kHz
Broadband Resolution (1)	0.03 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±49050 m/s² pk
Temperature Range (Operating)	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Electrical
Excitation Voltage	22 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	9 to 16 VDC
Discharge Time Constant	0.24 to 1.0 sec
Settling Time (within 10% of bias)	<3 sec
Spectral Noise (1 Hz)	11772 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	2943 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	981 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	294 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	6.35 mm
Size - Length	6.35 mm
Size - Width	6.35 mm
Weight (without cable)	1.0 gm	[2]
Electrical Connector	Integral Cable
Electrical Connection Position	Side
Cable Termination	1/4-28 4-Pin Jack
Cable Length	1.5 m
Cable Type	034 4-cond Shielded
Mounting	Adhesive

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

Optional Versions:

( J ) Ground Isolated

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

( W ) Water Resistant Cable
