Model: 105C

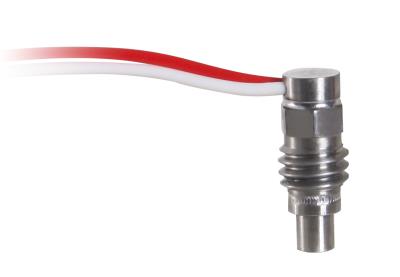

Subminiature ICP® pressure sensor, 100 psi, 50 mV/psi, 0.099" dia. diaphragm, 10-32 mtg thd

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Measurement Range (for ±5V output)	690 kPa
Sensitivity (-40 to +20 %)	7.3 mV/kPa
Maximum Pressure	51700 kPa	[3]
Resolution	0.035 kPa	[2]
Resonant Frequency	≥250 kHz
Rise Time (Reflected)	≤2.0 µ sec
Low Frequency Response (-5 %)	0.5 Hz
Non-Linearity	≤2.0 % FS	[1]
Environmental
Acceleration Sensitivity	0.028 kPa/(m/s²)	[2]
Temperature Range (Operating)	-73 to +121 °C
Temperature Coefficient of Sensitivity	≤0.162 %/°C
Maximum Flash Temperature	1649 °C
Maximum Vibration	9800 m/s² pk
Maximum Shock	49000 m/s² pk
Electrical
Output Polarity (Positive Pressure)	Positive
Discharge Time Constant (at room temp)	>1.0 sec
Excitation Voltage	22 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	<100 Ohm
Output Bias Voltage	8 to 14 VDC
Physical
Sensing Geometry	Compression
Sensing Element	Quartz
Housing Material	Stainless Steel
Diaphragm	17-4 Stainless Steel
Sealing	Epoxy
Electrical Connector	Integral Twisted Pair
Electrical Connections (Red )	Signal / Power
Electrical Connections (White )	Ground
Weight (with cable)	0.43 gm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Due to high sensitivity, the static pressure should be applied and removed very slowly. Rate should prevent more than 10 Volt change in output until Output Bias Voltage returns to normal (approximately 15 times discharge time constant).
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

065A10	ｼｰﾙﾘﾝｸﾞ
66926-01

Optional Versions:

No optional versions
