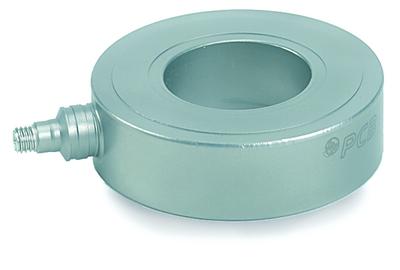

PCBセンサ・オンラインストア > 製品詳細 |
| Performance | ||
|---|---|---|
| Sensitivity (±15 %) | 13.5 mV/kN | |
| Measurement Range (Compression) | 355.86 kN | |
| Maximum Static Force (Compression) | 400.34 kN | |
| Broadband Resolution (1) | 8.0 N-rms | [2] |
| Low Frequency Response (-5 %) | 0.0003 Hz | [3] |
| Upper Frequency Limit | 40000 Hz | [4] |
| Non-Linearity | ≤1 % FS | [1] |
| Environmental | ||
| Temperature Range | -54 to +121 °C | |
| Temperature Coefficient of Sensitivity | ≤0.198 %/°C | |
| Electrical | ||
| Discharge Time Constant (at room temp) | ≥2000 sec | |
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 14 VDC | |
| Spectral Noise (1 Hz) | 0.71 N/√Hz | [2] |
| Spectral Noise (10 Hz) | 0.22 N√Hz | [2] |
| Spectral Noise (100 Hz) | 0.0625 N/√Hz | [2] |
| Spectral Noise (1000 Hz) | 0.0160 N/√Hz | [2] |
| Output Polarity (Compression) | Positive | |
| Physical | ||
| Preload | 71.172 kN | |
| Stiffness | 13 kN/µm | [2] |
| Size - Diameter | 52.1 mm | |
| Size - Height | 15 mm | |
| Size - Bolt Diameter | 24 mm | |
| Size - ID (Hole Diameter) | 26 mm | |
| Size - OD (Sensor) | 52 mm | |
| Size - Sensing Surface | 44.4 mm | |
| Weight | 155 gm | |
| Housing Material | Stainless Steel | |
| Sealing | Hermetic | |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
