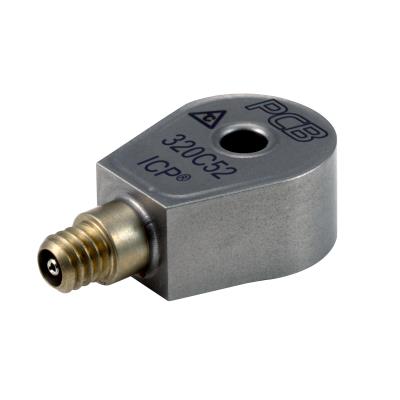

Model: 320C52
UHT-12™, ICP® accel., miniature (2 gm), ring-style, low temperature coefficient LTC , 10 mV/g, 1 to 10k Hz, 5-44 side connector

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (±5 %)	1 to 10000 Hz
Frequency Range (±10 %)	0.6 to 15000 Hz	[4]
Frequency Range (±3 dB)	0.3 to 25000 Hz	[4]
Resonant Frequency	≥50 kHz
Broadband Resolution (1)	.039 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±49000 m/s² pk
Temperature Range (Operating)	-73 to 163 °C
Temperature Coefficient of Sensitivity	≤0.009 %/°C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	≤.196 (m/s²)/µε	[2]
Electrical
Excitation Voltage	19 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	8 to 12 VDC
Discharge Time Constant	.4 to 2.2 sec
Settling Time (within 10% of bias)	≤2 sec
Spectral Noise (1 Hz)	7350 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	1470 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	490 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	245 (µm/sec²)/√Hz	[2]
Electrical Isolation (Base)	≥100000000 Ohm	[4] [5]
Physical
Size - Height	5.84 mm
Size - Length	17.3 mm
Size - Width	9.6 mm
Weight	1.85 gm	[2]
Sensing Element	UHT-12™
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Welded Hermetic
Electrical Connector	5-44 Coaxial
Electrical Connection Position	Side
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[5] Only when using off ground washer.
[6] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

039A20	取付ﾚﾝﾁ(5/64" hex)
081B36	絶縁用キャップ
ACS-1	校正データ

推奨アクセサリ

002P10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC)
002P20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC)
002P30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC)
018C10	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ10FT(5-44/BNC)
018C20	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ20FT(5-44/BNC)
018C30	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ30FT(5-44/BNC)
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

ACS-QC	校正機器リスト

Optional Versions:

( M ) Metric Mount
