Model: 350B44

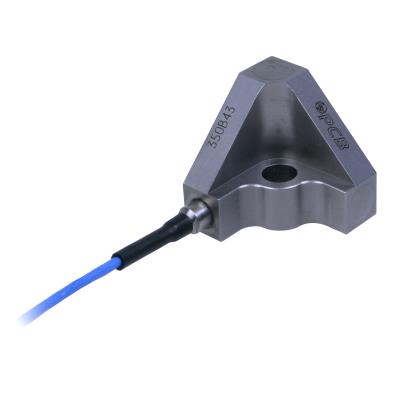

ICP® Triaxial shock accelerometer, 1.0 mV/g, 5k g range, mechanically isolated and electrically filtered, 5-ft integral cable

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±30 %)	.1 mV/(m/s²)
Measurement Range	±49000 m/s² pk
Frequency Range (±1 dB)	0.4 to 10000 Hz
Frequency Range (-3 dB)	0.2 to 25000 Hz	[2]
Resonant Frequency	>50 kHz
Electrical Filter Corner Frequency (3)	17 kHz	[1] [3]
Mechanical Filter Resonant Frequency	35 kHz	[1] [4]
Broadband Resolution (1)	0.39 m/s² rms	[1]
Non-Linearity (per 1000 g (9810 m/s²))	2.0 %
Transverse Sensitivity	≤7 %
Environmental
Overload Limit (Shock)	±490000 m/s² pk
Temperature Range (Operating)	-23 to +66 °C
Temperature Range (Storage)	-40 to +93 °C
Temperature Response	See Graph %/°F	[1] [5]
Base Strain Sensitivity	0.02 (m/s²)/µε	[1]
Electrical
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	8 to 14 VDC
Discharge Time Constant	1.0 to 2.0 sec	[1]
Settling Time (within 10% of bias)	<10 sec
Electrical Isolation (Case)	>100000000 Ohm
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	26.0 mm
Size - Length	26.0 mm
Size - Width	26.0 mm
Weight (without cable)	27 g	[1]
Electrical Connector	Integral Cable
Electrical Connection Position	Side
Cable Termination	1/4-28 4-Pin Jack
Cable Length	1.52 m
Cable Type	034 4-cond Shielded
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Typical.
[2] Typical corner frequency for coupled electrical and mechanical filters.
[3] Electrical filter is a second order filter.
[4] Amplitude at resonance is +9 dB.
[5] Test performed on a shaker at 100Hz
[6] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

100-16040-40	マウントスクリュー(M6×1.0×22ｍｍ long)
100-6774-10	マウントスクリュー(1/4-28×0.87インチ long)
100-8994-40	カップリンググリース
ACS-14T	校正データ(衝撃)
ACS-22T	校正データ(周波数)

選択アクセサリ

034G05	ｹｰﾌﾞﾙ4線5FT(4PIN/BNC)

Optional Versions:

No optional versions
