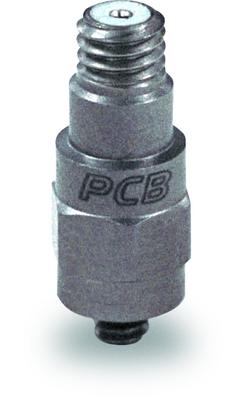

Model: 351B14
Cryogenic, miniature, quartz shear ICP® accel., 5 mV/g, 0.3 Hz to 20 kHz, 10-32 top conn. (-320 to +250F/-196 to +121C)

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	0.51 mV/(m/s²)
Measurement Range	±2943 m/s² pk
Frequency Range (±5 %)	1 to 8000 Hz
Frequency Range (±10 %)	0.7 to 10000 Hz
Frequency Range (±3 dB)	0.35 to 20000 Hz
Resonant Frequency	≥40 kHz
Broadband Resolution (1)	0.1 m/s² rms	[2]
Non-Linearity	1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±98100 m/s² pk
Temperature Range	-196 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	≤0.05 (m/s²)/µε	[2]
Electrical
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	3 to 10 VDC
Discharge Time Constant	0.5 to 2.0 sec
Spectral Noise (1 Hz)	19620 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	3924 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	1177 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	294 (µm/sec²)/√Hz	[2]
Physical
Size - Height	18.8 mm
Size - Hex	7.1 mm
Weight	1.8 gm	[2]
Sensing Element	Quartz
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Top
Mounting Thread	5-40 Male
Mounting Torque	90 to 135 N-cm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.
