PCBセンサ・オンラインストア > 製品詳細 |

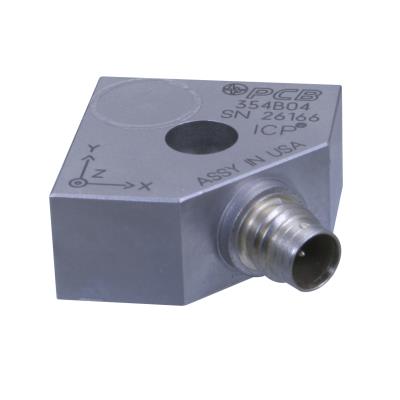

| Performance | ||
|---|---|---|
| Sensitivity (±5 %) | 1.02 mV/(m/s²) | |
| Measurement Range | ±4905 m/s² pk | |
| Frequency Range (±5 %) | .6 to 10000 Hz | |
| Resonant Frequency | ≥25 kHz | |
| Broadband Resolution (1) | .005 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| TEDS Compliant (Per IEEE 1451.4) | Yes | [3] |
| Environmental | ||
| Overload Limit (Shock) | ±49050 m/s² pk | |
| Temperature Range (Operating) | -54 to +93 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | .04 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.8 to 2.4 sec | |
| Settling Time (within 10% of bias) | <5 sec | |
| Spectral Noise (1 Hz) | 1668 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 245 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 78 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 59 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 kHz) | 39 (µm/sec2)/√Hz | [2] |
| Electrical Isolation (Case) | >100000000 Ohm | |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 9.7 mm | |
| Size - Length | 20.7 mm | |
| Size - Width | 20.7 mm | |
| Weight | 14.5 gm | [2] |
| Electrical Connector | 1/4-28 4-Pin | |
| Electrical Connection Position | Side | |
| Mounting | Through Hole | |
