356A32 | PCBセンサ・オンラインストア東陽テクニカ

センサとケーブルのセット品でお得！

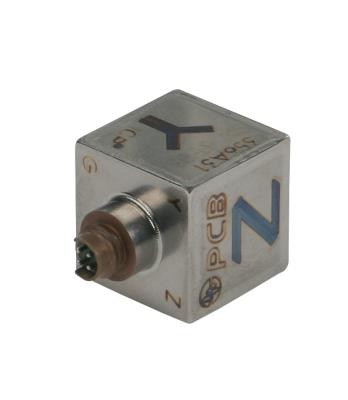

Model: 356A32
Platinum Stock Products; Triaxial, mini (5 gm) high sensitivity, ICP® accel., 100 mV/g, 1 Hz to 4k Hz, titanium hsg, 10 ft mating cable supplied

ケーブルとセット品でお得！
　本体価格￥254,000 が￥199,900 に　（￥54,100 のセット品割引き）　

ケーブル10FT(ミニ4ピン/BNC)：034K10　＋　センサ：356A32
セット品価格(税抜): ￥298,900

ケーブル20FT(ミニ4ピン/BNC)：034K20　＋　センサ：356A32
セット品価格(税抜): ￥310,900

ケーブル30FT(ミニ4ピン/BNC)：034K30　＋　センサ：356A32
セット品価格(税抜): ￥324,900

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	10.2 mV/(m/s²)
Measurement Range	±491 m/s² pk
Frequency Range (±5 %)	1.0 to 4000 Hz
Frequency Range (±10 %)	0.7 to 5000 Hz
Resonant Frequency	≥25 kHz
Broadband Resolution (1)	0.003 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±49050 m/s² pk
Temperature Range (Operating)	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	0.01 (m/s²)/µε	[2]
Electrical
Excitation Voltage	24 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	7 to 16 VDC
Discharge Time Constant	0.4 to 1.5 sec
Settling Time (within 10% of bias)	<5 sec
Spectral Noise (1 Hz)	932 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	196 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	58.9 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	29.4 (µm/sec²)/√Hz	[2]
Spectral Noise (10 kHz)	19.6 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	11.4 mm
Size - Length	11.4 mm
Size - Width	11.4 mm
Weight	5.4 gm	[2]
Electrical Connector	8-36 4-Pin
Electrical Connection Position	Side
Mounting Thread	5-40 Female
Mounting Torque	45 to 55 N-cm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A	接着ﾏｳﾝﾄﾍﾞｰｽ
080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/5-40)
081A90	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/5-40)
ACS-1T	校正データ
M081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/M3)

推奨アクセサリ

034K10	ｹｰﾌﾞﾙ10FT(ﾐﾆ4ﾋﾟﾝ/BNC)
034K20	ｹｰﾌﾞﾙ20FT(ﾐﾆ4ﾋﾟﾝ/BNC)
034K30	ｹｰﾌﾞﾙ30FT(ﾐﾆ4ﾋﾟﾝ/BNC)
080A30	ﾏｸﾞﾈｯﾄﾍﾞｰｽ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

039A09	取外しﾂｰﾙ(11.4mm)
080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

( TLA ) TEDS LMS International - Free Format

( TLB ) TEDS LMS International - Automotive Format

( TLC ) TEDS LMS International - Aeronautical Format

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
