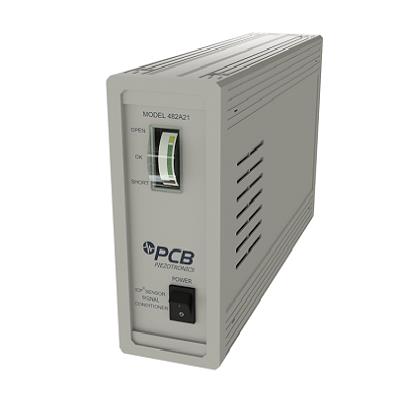

Model: 482A21
1-channel, line-powered, ICP® sensor signal cond., unity gain, BNC input/output conn.

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Channels	1
Voltage Gain (±1 %)	1:1
Low Frequency Response (-5 %)	<0.1 Hz	[1] [2]
High Frequency Response (-5 %)	>1000 kHz
Fault/Bias Monitor/Meter	26 V FS
Environmental
Temperature Range	0 to 50 °C
Electrical
Power Required (Standard)	DC Power
DC Power	+32 to 38 VDC	[4]
DC Power	0.12 Amps	[4]
Excitation Voltage (To Sensor)	25 to 27 VDC
DC Offset (Maximum)	<20 mV
Constant Current Excitation (To Sensor)	2 to 20 mA	[5]
Discharge Time Constant (0 to +50% )	10 sec	[1] [2]
Spectral Noise (1 Hz)	-123 dB	[3]
Spectral Noise (10 Hz)	-142 dB	[3]
Spectral Noise (100 Hz)	-147 dB	[3]
Spectral Noise (1 kHz)	-149 dB	[3]
Spectral Noise (10 kHz)	-150 dB	[3]
Broadband Electrical Noise (1 to 10000 Hz)	-110 dB	[3]
Physical
Electrical Connector (Input, sensor)	BNC Jack
Electrical Connector (Output)	BNC Jack
Electrical Connector (DC Power Input)	DIN Jack
Size - Height	16 cm
Size - Width	6.1 cm
Size - Length	28 cm
Weight	685 gm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] With >= 1M ohm input impedance of readout device.
[2] Un-buffered output, read out device input impedance affects discharge time constant and low frequency response of unit.
[3] Typical.
[4] Provided by supplied external DC power supply.
[5] User adjustable, factory set at 4 mA (± 0.5 mA). One control adjusts all channels.
[6] See PCB Declaration of Conformance PS024 for details.

Accessories:

標準付属アクセサリ

488B04/NC	ACアダプタ

選択アクセサリ

488B07	DCﾊﾟﾜｰﾜｯｸ
ERC-QC	校正証明書

Optional Versions:

No optional versions

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
