Model: HT356A63

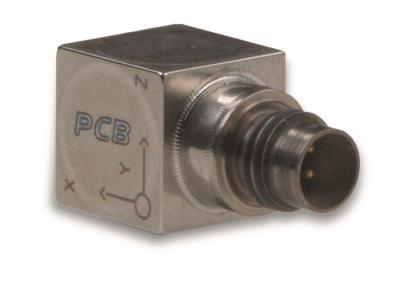

Triaxial, miniature (5.3 gm), ceramic shear ICP® accel., 10 mV/g, 2 to 4k Hz, 1/4-28 4-pin conn., to +325 F

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±15 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (-5 %)	2 to 4000 Hz
Resonant Frequency	≥55 kHz
Electrical Filter Roll-off	6 dB/octave	[2]
Electrical Filter Corner Frequency	15 kHz	[2]
Broadband Resolution (1)	0.08 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±98100 m/s² pk
Temperature Range (Operating)	-54 to +121 °C	[3]
Temperature Response	See Graph %/°F	[3]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	7 to 12 VDC
Discharge Time Constant	0.3 to 1.0 sec
Settling Time (within 10% of bias)	<3 sec
Spectral Noise (1 Hz)	4365 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	1325 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	883 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	785 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Size - Height	10.2 mm
Size - Length	19.6 mm
Size - Width	10.2 mm
Weight	5.3 gm	[2]
Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Mounting Thread	5-40 Female
Mounting Torque	45 to 56

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A	接着ﾏｳﾝﾄﾍﾞｰｽ
080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/5-40)
081A90	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/5-40)
ACS-1T	校正データ
M081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/M3)

推奨アクセサリ

034G10	ｹｰﾌﾞﾙ4線10FT(4PIN/BNC)
034G20	ｹｰﾌﾞﾙ4線20FT(4PIN/BNC)
034G30	ｹｰﾌﾞﾙ4線30FT(4PIN/BNC)
080A30	ﾏｸﾞﾈｯﾄﾍﾞｰｽ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C15	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付）
482C16	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(可変ｹﾞｲﾝ付）

選択アクセサリ

039A08	取外しﾂｰﾙ(10.2mm)
080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( HT ) High temperature, extends normal operation temperatures
