PCBセンサ・オンラインストア > 製品詳細 |

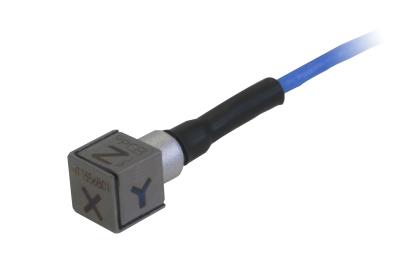

| Performance | ||
|---|---|---|
| Sensitivity (±20 %) | 0.51 mV/(m/s²) | |
| Measurement Range | ±9810 m/s² pk | |
| Frequency Range (±5 %) (y or z axis) | 2 to 8000 Hz | |
| Frequency Range (±5 %) (x axis) | 2 to 5000 Hz | |
| Frequency Range (+1 dB) (x axis) | ≥8 kHz | |
| Resonant Frequency | ≥50 kHz | |
| Broadband Resolution (1) | 0.03 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±98100 m/s² pk | |
| Temperature Range (Operating) | -54 to +180 °C | [3] |
| Temperature Response | See Graph %/°F | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 4 mA | [4] |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 7 to 12 VDC | |
| Discharge Time Constant | 0.24 to 1.0 sec | |
| Settling Time (within 10% of bias) | <3 sec | |
| Spectral Noise (1 Hz) | 11772 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 2943 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 981 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 294 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Size - Height | 6.35 mm | |
| Size - Length | 6.35 mm | |
| Size - Width | 6.35 mm | |
| Weight (without cable) | 1.0 gm | [2] |
| Electrical Connector | Integral Cable | |
| Electrical Connection Position | Side | |
| Cable Termination | 1/4-28 4-Pin Jack | [3] |
| Cable Length | 1.5 m | |
| Cable Type | 034 4-cond Shielded | |
| Mounting | Adhesive | |
