Model: TLD356A17

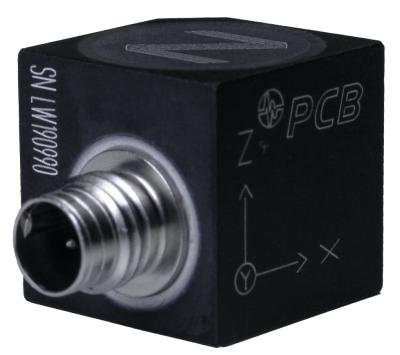

Triaxial, high sensitivity, ceramic shear ICP® accel., 500 mV/g, 0.5 to 3k Hz, aluminum hsg, 4-pin conn., TEDS 1.0

■ Specifications

Performance
Sensitivity (±10 %)	51 mV/(m/s²)
Measurement Range	±98 m/s² pk
Frequency Range (±5 %)	0.5 to 3000 Hz
Frequency Range (±10 %)	0.4 to 4000 Hz
Resonant Frequency	≥14 kHz
Broadband Resolution (1)	0.0006 m/s² rms	[2]
Phase Response (±5 °)	2 to 4000 Hz
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±49000 m/s² pk
Temperature Range (Operating)	-54 to +80 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	0.01 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤300 Ohm
Output Bias Voltage	8 to 12 VDC
Discharge Time Constant	0.8 to 2.0 sec
Settling Time (within 10% of bias)	<10 sec
Spectral Noise (1 Hz)	180 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	60 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	20 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	7 (µm/sec²)/√Hz	[2]
Spectral Noise (10 kHz)	2 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Anodized Aluminum
Sealing	Epoxy
Size - Height	14.0 mm
Size - Length	20.3 mm
Size - Width	14.0 mm
Weight	9.3 gm	[2]
Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Mounting Thread	5-40 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

推奨アクセサリ

選択アクセサリ

Optional Versions:

( A ) Adhesive Mount

( J ) Ground Isolated

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

( TLA ) TEDS LMS International - Free Format

( TLB ) TEDS LMS International - Automotive Format

( TLC ) TEDS LMS International - Aeronautical Format

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
