PCBセンサ・オンラインストア > 製品詳細 |

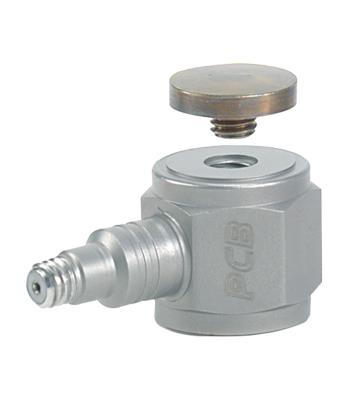

| Performance | ||
|---|---|---|
| Sensitivity (±15 %) | 1124 mV/kN | |
| Measurement Range (Compression) | 4.448 kN | |
| Measurement Range (Tension) | 2.224 kN | |
| Maximum Static Force (Compression) | 26.69 kN | |
| Maximum Static Force (Tension) | 2.224 kN | |
| Broadband Resolution (1) | 0.04448 N-rms | [2] |
| Low Frequency Response (-5 %) | 0.0003 Hz | [3] |
| Upper Frequency Limit | 36000 Hz | [4] |
| Non-Linearity | ≤1 % FS | [1] |
| Environmental | ||
| Temperature Range | -54 to +121 °C | |
| Temperature Coefficient of Sensitivity | ≤0.09 %/°C | |
| Electrical | ||
| Discharge Time Constant (at room temp) | ≥2000 sec | |
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤100 Ohm | |
| Output Bias Voltage | 8 to 14 VDC | |
| Spectral Noise (1 Hz) | 0.00356 N/√Hz | [2] |
| Spectral Noise (10 Hz) | 0.00128 N√Hz | [2] |
| Spectral Noise (100 Hz) | 0.000384 N/√Hz | [2] |
| Spectral Noise (1000 Hz) | 0.000123 N/√Hz | [2] |
| Physical | ||
| Stiffness | 1.05 kN/µm | [2] |
| Size - Hex | 15.88 mm | |
| Size - Height | 15.88 mm | |
| Size - Sensing Surface | 12.7 mm | |
| Weight | 22.7 gm | |
| Housing Material | Stainless Steel | |
| Sealing | Hermetic | |
| Electrical Connector | 10-32 Coaxial Jack | |
| Electrical Connection Position | Side | |
| Mounting Thread | 10-32 Female | |
| 080A81 | 接着剤 |
|---|---|
| 081B05 | ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32) |
| 084A03 | ｲﾝﾊﾟｸﾄｷｬｯﾌﾟ |
| 002C10 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC) |
|---|---|
| 002C20 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC) |
| 002C30 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC) |
| 480C02 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 480E09 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付) |
| 482A21 | 1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| HCS-QC | 校正証明書 |
|---|
