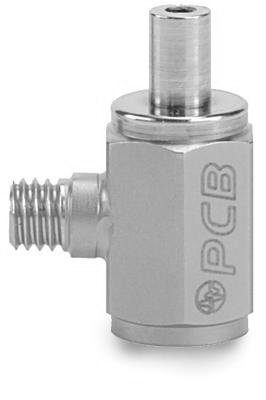

Model: 209C11
Miniature ICP® force sensor, 1 sec DTC, 2.2 lb comp., 1 lb tension, 2200 mV/lb

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±15 %)	494604 mV/kN
Measurement Range (Compression)	0.00979 kN
Measurement Range (Tension)	0.00445 kN
Maximum Static Force (Compression)	0.0489 kN
Maximum Static Force (Tension)	0.00445 kN
Broadband Resolution (1)	0.00009 N-rms	[1]
Low Frequency Response (-5 %)	0.5 Hz	[2]
Upper Frequency Limit	30000 Hz	[3]
Environmental
Temperature Range	-54 to +121 °C
Temperature Coefficient of Sensitivity	≤0.09 %/°C
Electrical
Discharge Time Constant (at room temp)	≥1 sec
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 12 VDC
Spectral Noise (1 Hz)	0.0000197 N/√Hz	[1]
Spectral Noise (10 Hz)	0.00000207 N√Hz	[1]
Spectral Noise (100 Hz)	0.00000058 N/√Hz	[1]
Spectral Noise (1000 Hz)	0.000000215 N/√Hz	[1]
Output Polarity (Compression)	Positive
Physical
Stiffness	0.35 kN/µm	[1]
Size - Hex	9.53 mm
Size - Height	21.08 mm
Weight	8.2 gm
Housing Material	Stainless Steel
Sealing	Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side
Mounting Thread	No Metric Equivalent

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Typical.
[2] Calculated from discharge time constant.
[3] Estimated using rigid body dynamics calculations.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

081A05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32)
084A38	熱程用ﾌﾞｰﾂ

推奨アクセサリ

002C10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC)
002C20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC)
002C30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

HCS-QC	校正証明書

Optional Versions:

( M ) Metric Mount

( N ) Negative Output Polarity

( W ) Water Resistant Cable
