PCBセンサ・オンラインストア > 製品詳細 |

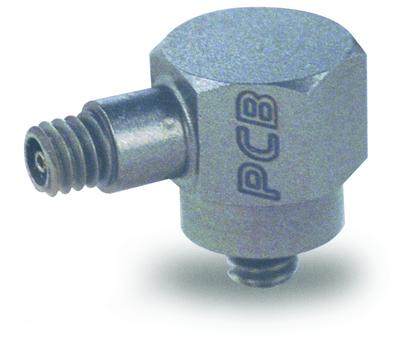

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 0.51 mV/(m/s²) | |
| Measurement Range | ±2943 m/s² pk | |
| Frequency Range (±5 %) | 1 to 10000 Hz | |
| Frequency Range (±10 %) | 0.7 to 15000 Hz | |
| Frequency Range (±3 dB) | 0.35 to 30000 Hz | |
| Resonant Frequency | ≥40 kHz | |
| Broadband Resolution (1) | 0.1 m/s² rms | [2] |
| Non-Linearity | 1 % | [1] |
| Transverse Sensitivity | ≤5 % | [3] |
| Environmental | ||
| Overload Limit | ±98100 m/s² pk | |
| Temperature Range | -196 to +121 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | ≤0.02 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 3 to 10 VDC | |
| Discharge Time Constant | 0.5 to 2.0 sec | |
| Spectral Noise (10 Hz) | 3924 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 1177 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 294 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 Hz) | 19620 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Size - Hex | 7.9 mm | |
| Weight | 2.0 gm | [2] |
| Sensing Element | Quartz | |
| Size - Height | 10.9 mm | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Electrical Connector | 5-44 Coaxial | |
| Electrical Connection Position | Side | |
| Mounting Thread | 5-40 Male | |
| Mounting Torque | 90 to 135 N-cm | |
| ACS-1 | 校正データ |
|---|
| 002P10 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC) |
|---|---|
| 002P20 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC) |
| 002P30 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC) |
| 018C10 | ﾋﾞﾆｰﾙｹｰﾌﾞﾙ10FT(5-44/BNC) |
| 018C20 | ﾋﾞﾆｰﾙｹｰﾌﾞﾙ20FT(5-44/BNC) |
| 018C30 | ﾋﾞﾆｰﾙｹｰﾌﾞﾙ30FT(5-44/BNC) |
| 480C02 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 480E09 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付) |
| 482A21 | 1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| ACS-QC | 校正機器リスト |
|---|
