PCBセンサ・オンラインストア > 製品詳細 |

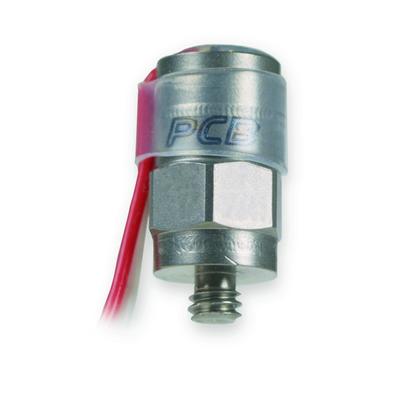

| Performance | ||
|---|---|---|
| Sensitivity (±10 %) | 10.2 mV/(m/s²) | |
| Measurement Range | ±491 m/s² pk | |
| Frequency Range (±5 %) | 0.5 to 10000 Hz | |
| Frequency Range (±10 %) | 0.3 to 12000 Hz | |
| Frequency Range (±3 dB) | 0.2 to 20000 Hz | |
| Resonant Frequency | ≥35 kHz | |
| Phase Response (±5 °) (at 70°F [21°C]) | 2 to 6000 Hz | |
| Broadband Resolution (1) | 0.0015 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | [3] |
| Environmental | ||
| Overload Limit (Shock) | ±49050 m/s² pk | |
| Temperature Range (Operating) | -54 to +93 °C | [4] |
| Temperature Response | See Graph %/°F | [2] |
| Base Strain Sensitivity | <0.05 (m/s²)/µε | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤300 Ohm | |
| Output Bias Voltage | 8 to 12 VDC | |
| Discharge Time Constant | 0.8 to 2.4 sec | |
| Settling Time (within 10% of bias) | <10 sec | |
| Spectral Noise (1 Hz) | 588 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 157 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 49 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 14.7 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Size - Height | 14.7 mm | |
| Size - Hex | 9/32 in | |
| Weight | 2.0 gm | [2] |
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Welded Hermetic | |
| Electrical Connector | 10-32 Coaxial Plug | |
| Electrical Connection Position | Top | |
| Cable Length | 3 m | |
| Cable Type | 031 Twisted Pair | |
| Mounting Thread | 5-40 Male | |
| Mounting Torque | 90 to 135 N-cm | |
