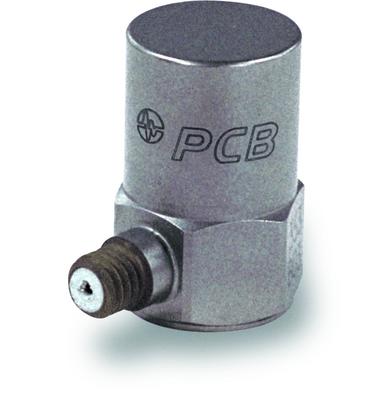

353B01 加速度計(加速度センサ) ICP| PCB製品・検索見積りサイト東陽テクニカ

■ Specifications

Performance
Sensitivity (±5 %)	2.04 mV/(m/s²)	[4]
Measurement Range	±2453 m/s² pk
Frequency Range (±5 %)	1 to 7000 Hz
Frequency Range (±10 %)	0.7 to 10000 Hz
Frequency Range (±3 dB)	0.35 to 18000 Hz
Resonant Frequency	≥38 kHz
Broadband Resolution (1)	0.03 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit (Shock)	±98100 m/s² pk
Temperature Range (Operating)	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	≤0.005 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 12 VDC
Discharge Time Constant	0.5 to 2.6 sec
Settling Time (within 10% of bias)	<5 sec
Spectral Noise (1 Hz)	15700 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	3433 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	883 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	314 (µm/sec²)/√Hz	[2]
Physical
Size - Height	20.6 mm
Size - Hex	12.7 mm
Weight	10 gm	[2]
Sensing Element	Quartz
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Welded Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side
Mounting Thread	10-32 Female

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] B and Q options supplied with a sensitivity tolerance of ± 10 %.
[5] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A	接着ﾏｳﾝﾄﾍﾞｰｽ
080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/10-32)
ACS-1	校正データ
M081B05	ﾏｳﾝﾄｽﾀｯﾄﾞ(10-32/M6x0.75)

推奨アクセサリ

002C10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC)
002C20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC)
002C30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC)
080A27	ﾏｸﾞﾈｯﾄﾍﾞｰｽ
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

080B10	三軸ｱﾀﾞﾌﾟﾀ0.87"
080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( J ) Ground Isolated

Electrical Isolation	≥100000000 Ohm
Frequency Range	0.7 to 8000 Hz
Frequency Range	1 to 5000 Hz
Resonant Frequency	22 kHz
Size - Height	21.8 mm
Size - Hex	12.7 mm

( Q ) Extended discharge time constant

Discharge Time Constant	>10 sec
Frequency Range	0.07 to 10000 Hz
Frequency Range	0.1 to 7000 Hz
Settling Time	45 sec

Accessories:

ACS-4

Single axis, low frequency phase and amplitude response cal from 0.5 to 10 Hz

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC
Sensitivity (±10 %)	2.04 mV/V/(m/s²)
Size - Height	20.8 mm

( TLA ) TEDS LMS International - Free Format

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC
Sensitivity (±10 %)	2.04 mV/V/(m/s²)
Size - Height	20.8 mm

( TLB ) TEDS LMS International - Automotive Format

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC
Sensitivity (±10 %)	2.04 mV/V/(m/s²)
Size - Height	20.8 mm

( TLC ) TEDS LMS International - Aeronautical Format

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC
Sensitivity (±10 %)	2.04 mV/V/(m/s²)
Size - Height	20.8 mm

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

Excitation Voltage	22 to 30 VDC
Output Bias Voltage	8.5 to 14.5 VDC
Sensitivity (±10 %)	2.04 mV/V/(m/s²)
Size - Height	20.8 mm

( W ) Water Resistant Cable

Electrical Connection Position

Side

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
