TLD352A56 加速度計(加速度センサ) ICP| PCBセンサ・オンラインストア東陽テクニカ

Model: TLD352A56

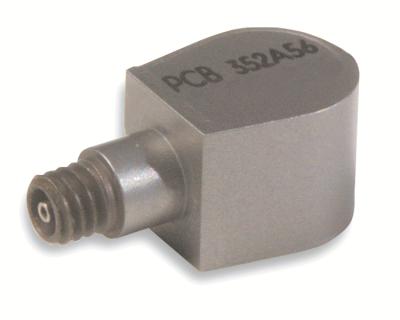

High sensitivity, miniature (1.8 gm), ceramic shear ICP® accel., 100 mV/g, with TEDS and 5-44 coaxial conn., TEDS Ver 1.0

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	10.2 mV/(m/s²)
Measurement Range	±490 m/s² pk
Frequency Range (±5 %)	0.5 to 10000 Hz
Frequency Range (±10 %)	0.3 to 15000 Hz
Resonant Frequency	≥45 kHz
Broadband Resolution (1)	0.006 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
TEDS Compliant	Yes	[3]
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	±49050 m/s² pk
Temperature Range (Operating)	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Electrical
Excitation Voltage	22 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	8.5 to 15.5 VDC
Discharge Time Constant	0.5 to 1.5 sec
Settling Time (within 10% of bias)	<5 sec
Spectral Noise (1 Hz)	1180 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	392 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	294 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	98.1 (µm/sec²)/√Hz	[2]
Physical
Size - Height	6.6 mm
Size - Length	14.5 mm
Size - Width	7.6 mm
Weight	1.8 gm	[2]
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Electrical Connector	5-44 Coaxial
Electrical Connection Position	Side
Mounting	Adhesive

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] TEDS Capable Digital Memory and Communication, compliant with IEEE P1451.4
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

039A31	取外しﾂｰﾙ
080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
ACS-1	校正データ

推奨アクセサリ

002P10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC)
002P20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC)
002P30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC)
018C10	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ10FT(5-44/BNC)
018C20	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ20FT(5-44/BNC)
018C30	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ30FT(5-44/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( TLA ) TEDS LMS International - Free Format

( TLB ) TEDS LMS International - Automotive Format

( TLC ) TEDS LMS International - Aeronautical Format

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
