PCBセンサ・オンラインストア > 製品詳細 |

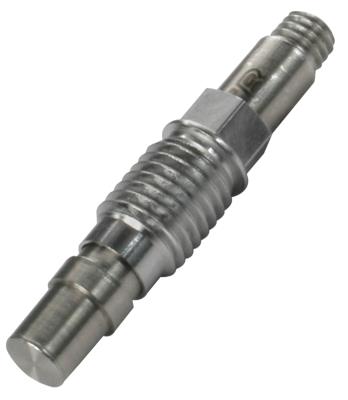

| Performance | ||
|---|---|---|
| Measurement Range (for ±5V output) | 1379 kPa | |
| Useful Overrange (for ± 10V output) | 2758 kPa | [3] |
| Sensitivity (±15 %) | 3.6 mV/kPa | |
| Maximum Pressure | 6895 kPa | |
| Resolution | 0.007 kPa | [2] |
| Resonant Frequency | ≥500 kHz | |
| Rise Time | ≤1.0 µ sec | |
| Low Frequency Response (-5 %) | 0.5 Hz | |
| Non-Linearity | ≤1.0 % FS | [1] |
| Environmental | ||
| Acceleration Sensitivity | 0.0014 kPa/(m/s²) | [2] |
| Temperature Range (Operating) | -73 to +135 °C | |
| Temperature Coefficient of Sensitivity | ≤0.054 %/°C | |
| Maximum Flash Temperature | 1649 °C | |
| Maximum Vibration | 19600 m/s² pk | |
| Maximum Shock | 196000 m/s² pk | |
| Electrical | ||
| Output Polarity (Positive Pressure) | Positive | |
| Discharge Time Constant (at room temp) | ≥1.0 sec | |
| Excitation Voltage | 20 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | <100 Ohm | |
| Output Bias Voltage | 8 to 14 VDC | |
| Physical | ||
| Sensing Geometry | Compression | |
| Sensing Element | Quartz | |
| Housing Material | 17-4 Stainless Steel | |
| Diaphragm | Invar | |
| Sealing | Welded Hermetic | |
| Electrical Connector | 10-32 Coaxial Jack | |
| Weight (with clamp nut) | 6.0 gm | |
| 060A03 | ｸﾗﾝﾌﾟﾅｯﾄ(5/16-24) |
|---|---|
| 060A05 | ｸﾗﾝﾌﾟﾅｯﾄ(M7) |
| 065A02 | ｼｰﾙﾘﾝｸﾞ |
| 065A05 | ｼｰﾙｽﾘｰﾌﾞ |
| 002C10 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC) |
|---|---|
| 002C20 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC) |
| 002C30 | ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC) |
| 480C02 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 480E09 | ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付) |
| 482A21 | 1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| 482C05 | 4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ |
| PCS-QC | 校正証明書 |
|---|
