Model: 202B

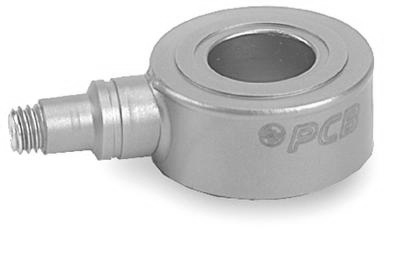

ICP® quartz force ring, 10k lb comp., 0.5 mV/lb

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±15 %)	112.4 mV/kN
Measurement Range (Compression)	44.48 kN
Maximum Static Force (Compression)	66.72 kN
Broadband Resolution (1)	0.890 N-rms	[2]
Low Frequency Response (-5 %)	0.0003 Hz	[3]
Upper Frequency Limit	60000 Hz	[4]
Non-Linearity	≤1 % FS	[1]
Environmental
Temperature Range	-54 to +121 °C
Temperature Coefficient of Sensitivity	≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp)	≥2000 sec
Excitation Voltage	20 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 14 VDC
Output Polarity (Compression)	Positive
Physical
Preload	8.896 kN
Stiffness	2.8 kN/µm	[2]
Size - Diameter	22.1 mm
Size - Height	9.91 mm
Size - Bolt Diameter	10 mm
Size - ID (Hole Diameter)	10.49 mm
Size - OD (Sensor)	22.10 mm
Size - Sensing Surface	16.89 mm
Weight	19 gm
Housing Material	Stainless Steel
Sealing	Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[5] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A82	潤滑剤
081A12	ﾏｳﾝﾄｽﾀｯﾄﾞ(5/16-24)
082B02	ｱﾝﾁﾌﾘｸｼｮﾝﾜｯｼｬｰ
083B02	ﾊﾟｲﾛｯﾄﾌﾞｯｼﾝｸﾞ

推奨アクセサリ

002C10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC)
002C20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC)
002C30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

HCS-QC	校正証明書

Optional Versions:

( M ) Metric Mount

( N ) Negative Output Polarity

( W ) Water Resistant Cable
