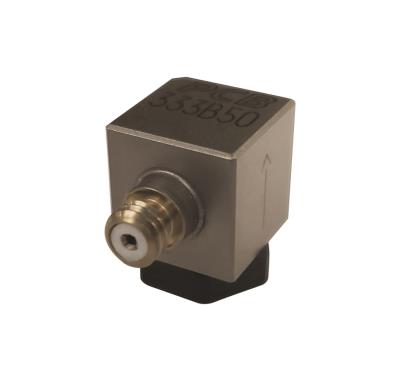

Model: 333B50
Platinum Stock Products; Modal array, ceramic shear ICP® accel, 1000 mV/g, 0.5 to 3k Hz, 10-32 side conn., 5-40 stud mount

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	102 mV/(m/s²)
Measurement Range	±49 m/s² pk
Frequency Range (±5 %)	0.5 to 3000 Hz
Resonant Frequency	≥20 kHz
Phase Response (±5 °) (at 70°F [21°C])	2.5 to 3000 Hz
Broadband Resolution (1)	0.0005 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±39000 m/s² pk
Temperature Range	-18 to +66 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	0.1 (m/s²)/µε	[2]
Electrical
Excitation Voltage	18 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤500 Ohm
Output Bias Voltage	7 to 12 VDC
Discharge Time Constant	0.7 to 2.0 sec
Spectral Noise (1 Hz)	150 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	37 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	11 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	3.9 (µm/sec²)/√Hz	[2]
Physical
Size - Length	17.3 mm
Size - Width	11.4 mm
Weight	7.5 gm	[2]
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side
Mounting Thread	5-40 Female
Mounting Torque	45 to 56 N-cm

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

080A109	ﾍﾟﾄﾛﾜｯｸｽ(試供品 1個入)
080A25	接着ﾏｳﾝﾄﾍﾞｰｽ
081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/5-40)
ACS-1	校正データ
M081A27	ﾏｳﾝﾄｽﾀｯﾄﾞ(5-40/M3)

推奨アクセサリ

002C10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(10-32/BNC)
002C20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(10-32/BNC)
002C30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(10-32/BNC)
003C10	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ10FT(10-32/BNC)
003C20	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ20FT(10-32/BNC)
003C30	ﾃﾌﾛﾝ青ﾛｰﾉｲｽﾞｹｰﾌﾞﾙ30FT(10-32/BNC)
080A30	ﾏｸﾞﾈｯﾄﾍﾞｰｽ
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

080A24	ﾍﾟﾄﾛﾜｯｸｽ(4個入)
ACS-QC	校正機器リスト

Optional Versions:

( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

( TLA ) TEDS LMS International - Free Format

( TLB ) TEDS LMS International - Automotive Format

( TLC ) TEDS LMS International - Aeronautical Format

( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
