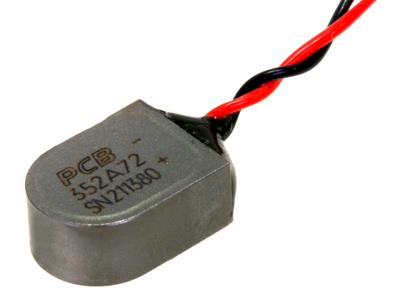

| Performance | ||
|---|---|---|
| Sensitivity (±15 %) | 1.02 mV/(m/s²) | |
| Measurement Range | ±4900 m/s² pk | |
| Frequency Range (±5 %) | 0.5 to 4500 Hz | |
| Electrical Filter Corner Frequency | 15000 Hz | [2] |
| Electrical Filter Roll-off | 6 dB/octave | [2] |
| Resonant Frequency | ≥65 kHz | |
| Broadband Resolution (1) | 0.03 m/s² rms | [2] |
| Non-Linearity | ≤1 % | [1] |
| Transverse Sensitivity | ≤5 % | |
| Environmental | ||
| Overload Limit (Shock) | ±98000 m/s² pk | |
| Temperature Range (Operating) | -54 to +93 °C | |
| Temperature Response | See Graph %/°F | [2] |
| Electrical | ||
| Excitation Voltage | 18 to 30 VDC | |
| Constant Current Excitation | 2 to 20 mA | |
| Output Impedance | ≤200 Ohm | |
| Output Bias Voltage | 7 to 12 VDC | |
| Discharge Time Constant | 1.0 to 3.5 sec | |
| Settling Time (within 10% of bias) | ≤3 sec | |
| Spectral Noise (1 Hz) | 7110 (µm/sec2)/√Hz | [2] |
| Spectral Noise (10 Hz) | 2210 (µm/sec2)/√Hz | [2] |
| Spectral Noise (100 Hz) | 981 (µm/sec2)/√Hz | [2] |
| Spectral Noise (1 kHz) | 981 (µm/sec2)/√Hz | [2] |
| Physical | ||
| Size - Height | 3.6 mm | |
| Size - Length | 10.4 mm | |
| Size - Width | 6.4 mm | |
| Weight (without cable) | 0.64 gm | [2] |
| Sensing Element | Ceramic | |
| Sensing Geometry | Shear | |
| Housing Material | Titanium | |
| Sealing | Hermetic | |
| Electrical Connector | Solder pins with attached cable | |
| Electrical Connection Position | Side | |
| Cable Termination | 10-32 Coaxial Plug | |
| Cable Length | 3.05 m | [3] |
| Mounting | Adhesive | |
