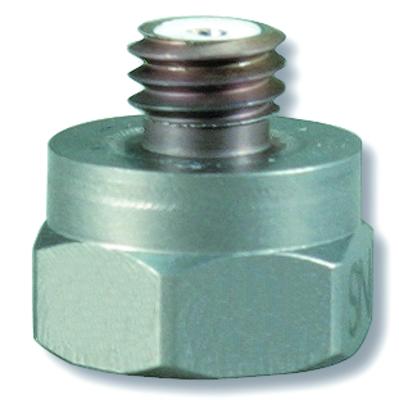

Model: 352C42
Low profile, miniature (2.8 gm), ceramic shear ICP® accel., 100 mV/g, 1 Hz to 10k Hz

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	10.2 mV/(m/s²)
Measurement Range	±491 m/s² pk
Frequency Range (±5 %)	1.0 to 9000 Hz
Frequency Range (±10 %)	0.5 to 10000 Hz
Frequency Range (±3 dB)	0.3 to 15000 Hz
Resonant Frequency	≥30 kHz
Broadband Resolution (1)	0.005 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±49050 m/s² pk
Temperature Range	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Electrical
Excitation Voltage	22 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤200 Ohm
Output Bias Voltage	8 to 15 VDC
Discharge Time Constant	0.5 to 2.0 sec
Settling Time (within 10% of bias)	<10 sec
Spectral Noise (1 Hz)	1177 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	294 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	196 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	59 (µm/sec²)/√Hz	[2]
Physical
Size - Height	9.7 mm
Size - Hex	9.7 mm
Weight	2.8 gm	[2]
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Welded Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Top
Mounting	Adhesive

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.
