Model: 355B12

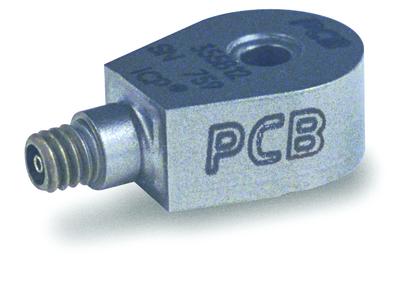

Miniature (2 gm), ring-style, ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, 5-44 side conn.

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	1.02 mV/(m/s²)
Measurement Range	±4905 m/s² pk
Frequency Range (±5 %)	1 to 10000 Hz
Frequency Range (±10 %)	0.6 to 15000 Hz	[4]
Frequency Range (±3 dB)	0.3 to 25000 Hz	[4]
Resonant Frequency	≥50 kHz
Broadband Resolution (1)	0.005 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±98100 m/s² pk
Temperature Range (Operating)	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	≤0.5 (m/s²)/µε	[2]
Electrical
Excitation Voltage	19 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	8 to 12 VDC
Discharge Time Constant	0.5 to 2.0 sec
Settling Time (within 10% of bias)	≤5 sec
Spectral Noise (1 Hz)	1860 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	294 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	118 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	49 (µm/sec²)/√Hz	[2]
Electrical Isolation (Base)	≥100000000 Ohm	[4] [5]
Physical
Size - Height	5.84 mm
Size - Length	17.3 mm
Size - Width	9.6 mm
Weight	2.3 gm	[2]
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Welded Hermetic
Electrical Connector	5-44 Coaxial
Electrical Connection Position	Side
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] When used with off ground washer, high frequency specification is typically 2 kHz less on 10% and 3 dB points.
[5] Only when using off ground washer.
[6] See PCB Declaration of Conformance PS023 for details.

Accessories:

標準付属アクセサリ

039A20	取付ﾚﾝﾁ(5/64" hex)
081B36	マウントスタッド
ACS-1	校正データ

推奨アクセサリ

002P10	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ10FT(5-44/BNC)
002P20	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ20FT(5-44/BNC)
002P30	ﾃﾌﾛﾝ白ｹｰﾌﾞﾙ30FT(5-44/BNC)
018C10	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ10FT(5-44/BNC)
018C20	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ20FT(5-44/BNC)
018C30	ﾋﾞﾆｰﾙｹｰﾌﾞﾙ30FT(5-44/BNC)
480C02	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
480E09	ICP電池式ｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ(ｹﾞｲﾝ付)
482A21	1CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ
482C05	4CHｼｸﾞﾅﾙｺﾝﾃﾞｨｼｮﾅ

選択アクセサリ

ACS-QC	校正機器リスト

Optional Versions:

( M ) Metric Mount

Accessories:

M081C36	Accessory for IMI Sensors Product
M039A20	Allen wrench, 1.5mm hex
M081C36	Accessory for IMI Sensors Product
M081C36	Accessory for IMI Sensors Product
M039A20	Allen wrench, 1.5mm hex
M081C36	Accessory for IMI Sensors Product

■ Documents & Downloads

Product Documents

● Product Manual

● Product Specification Sheet
