Model: M355B02

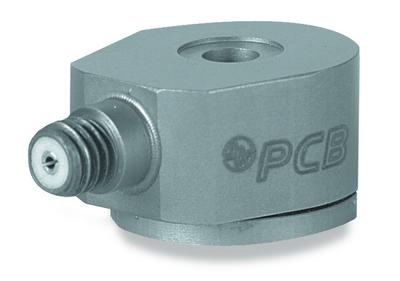

Ring-style, general purpose, ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, 10-32 side conn., through hole mtg with M3x0.5x16mm insulated cap screw, ground isolated

Specifications
アクセサリ
Product Documents

■ Specifications

Performance
Sensitivity (±10 %)	1.02 mV/(m/s²)
Measurement Range	±4900 m/s² pk
Frequency Range (±5 %)	1 to 10000 Hz
Frequency Range (±10 %)	0.6 to 12000 Hz
Frequency Range (±3 dB)	0.3 to 17000 Hz
Resonant Frequency	≥35 kHz
Broadband Resolution (1)	0.005 m/s² rms	[2]
Non-Linearity	≤1 %	[1]
Transverse Sensitivity	≤5 %	[3]
Environmental
Overload Limit	±49000 m/s² pk
Temperature Range	-54 to +121 °C
Temperature Response	See Graph %/°F	[2]
Base Strain Sensitivity	0.49 (m/s²)/µε	[2]
Electrical
Excitation Voltage	22 to 30 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance	≤100 Ohm
Output Bias Voltage	7 to 15 VDC
Discharge Time Constant	0.5 to 2 sec
Settling Time (within 10% of bias)	<10 sec
Spectral Noise (1 Hz)	880 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	147 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	49 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	29 (µm/sec²)/√Hz	[2]
Electrical Isolation (Base)	>100000000 Ohm
Physical
Size - Height	10.2 mm
Size - Length	24.1 mm
Size - Width	16.0 mm
Weight	10 gm	[2]
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium
Sealing	Hermetic
Electrical Connector	10-32 Coaxial Jack
Electrical Connection Position	Side
Mounting	Through Hole

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.
